1. Front wheel
Show disc side, fork structure and caliper mount.
1
/
21

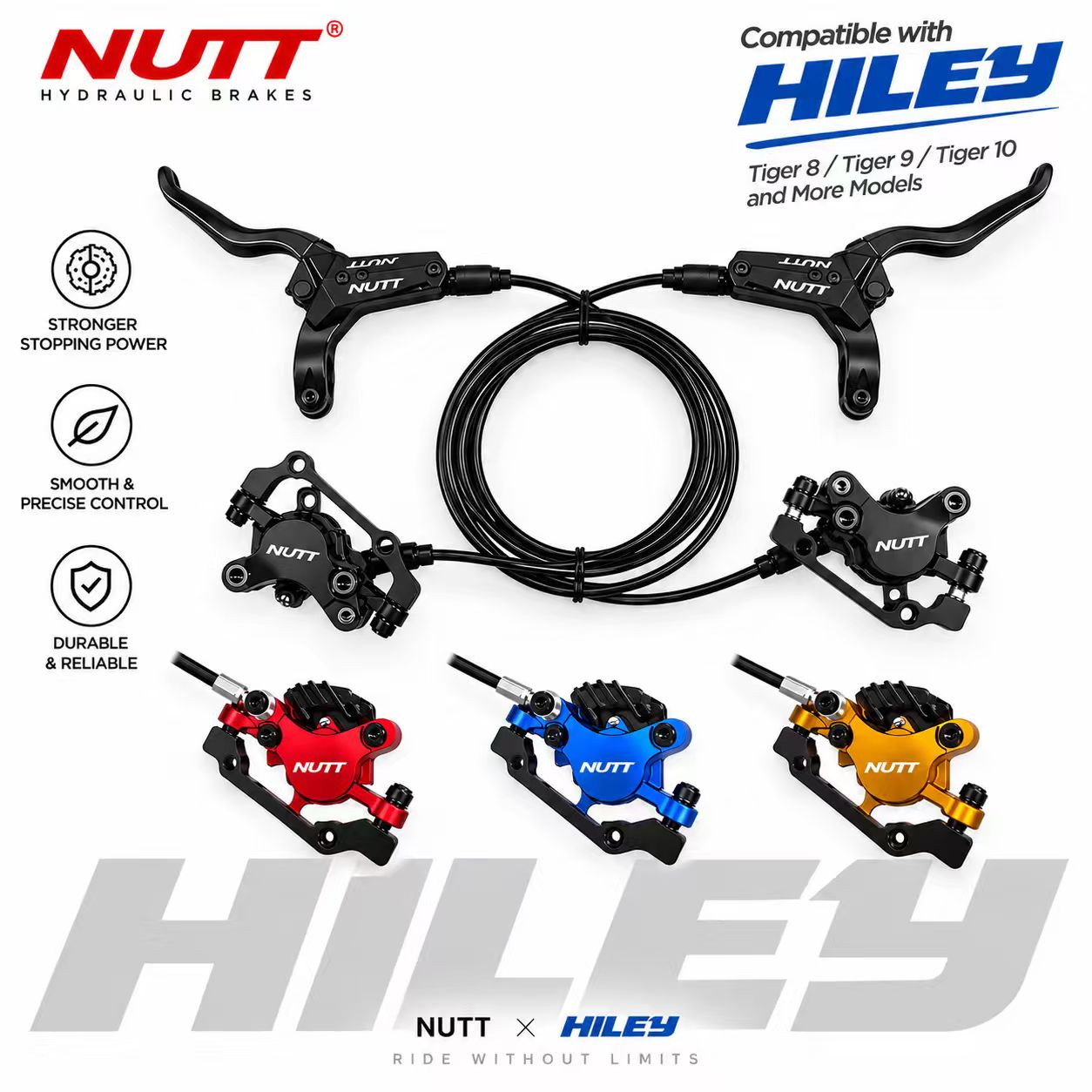

NUTT Hydraulic Disc Brake Upgrade Kit for HILEY Electric Scooters
€59,99 EUR
€84,00 EUR
-
Free Shipping (7-14 Business Days Delivery)
-
All Prices Include VAT – No Extra fees
-
CE，DGT Certified – Compliant With EU Regulations
-
1-Year Warranty Included
Send These Photos If Unsure
Not sure which version fits? Send us these three photos and our mechanics will confirm the correct setup.
2. Rear wheel
Show rear disc side, swingarm area and caliper direction.
3. Brake connector
Show the power-off sensor connector shape and pins.
NUTT Dual Piston
Controlled braking for your HILey upgrade
NUTT system uses an open hydraulic design with dual-piston calipers, forged aluminum construction, and mineral brake fluid.
- Open system, dual piston
- Forged aluminum caliper body
- Internal or swivel hose routing
- Heat-dissipating pad compatibility
- Adjustable reverse-version caliper
- Black forged aluminum lever
Product Specifications
Confirm the final configuration and SKU before purchasing.
| Applicable Model | All HILey Electric Scooter Models |
|---|---|
| Brake Type | 2-Piston Hydraulic Disc Brake Upgrade Kit (Front & Rear) |
| Brake Pad Options | Ceramic brake pads & Copper-based brake pads |
| Matching Rotor | 140-180 × 1.8mm Brake Rotor, Uniform Clamping Force |
| Hose Spec | Front: 1350mm | Rear: 2200mm (L1 Straight Leakproof Joint) |
| Pre-Filled System | Pre-bled brake lever for hassle-free installation |
| Safety Function | Integrated instant motor power-off sensor |
| Material Feature | Wear-resistant & rust-proof aluminum alloy |
| Mount Type | IS standard mount & Post mount options |
What's Included
Package contents vary by selected position.
Position 01
Front Brake
- Front dual-piston hydraulic caliper
- Matching hydraulic brake lever
- Front hydraulic hose (1350mm)
- Pre-installed brake pads
- Mounting hardware
Spacer is included only when selected.
Position 02
Rear Brake
- Rear dual-piston hydraulic caliper
- Matching hydraulic brake lever
- Rear hydraulic hose (2200mm)
- Pre-installed brake pads
- Mounting hardware
Confirm swingarm clearance before ordering.
Recommended
Front & Rear Set
- Front & Rear dual-piston calipers
- Left & Right brake levers
- Front (1350mm) & Rear (2200mm) hoses
- Brake pads for both positions
- Complete mounting hardware set
Best value for full braking system upgrade.
Fitment reminder: Adapter cables, rotor spacers, and washers
may vary by scooter model and production year. Contact us if unsure.
Choose the Right Braking System
Compare the key differences between standard mechanical brakes and the NUTT 2-piston hydraulic brake system.
Ordinary Brake
Standard cable-driven system
-
Braking Performance: Slow response, unstable stop
-
Sensor Feature: No power-off sensor, circuit risk
-
Sealing Structure: Poor sealing, easy oil leakage
-
Installation: Requires modification & adaptors
-
Piston Structure: Plastic 2-piston, easy deformation
-
Tube Length: Fixed tube length only
-
Warranty: 6 Months short warranty
NUTT Hydraulic Brake
Advanced 2-piston hydraulic system
-
Braking Performance: Sensitive & stable braking
-
Sensor Feature: Built-in power-off sensor protects motor
-
Sealing Structure: Leak-proof sealing, low maintenance
-
Installation: Direct bolt-on replacement
-
Piston Structure: 2-Piston CNC Aluminum Body
-
Tube Length: Custom 1350/2200mm lengths
-
Warranty: 1 Year warranty
Installation & safety
Installation Steps & Safety Instructions
Follow the fitment checks below before installing or riding with a NUTT hydraulic brake upgrade.
Confirm the correct configuration
Check the scooter model, production version, front or rear position, rotor side, mounting type and brake connector. Confirm whether a spacer, adapter cable or original washer is required.
Inspect the package before fitting
Make sure the caliper, lever, hose, brake pads and selected hardware match the purchased configuration. Do not install damaged parts or discard model-specific hardware before fitment is confirmed.
Remove the original brake safely
Secure the scooter before removing the original brake. Protect the rotor and hose area from contamination, and keep any original washers or model-specific parts for comparison.
Install the lever and caliper
Mount the lever and caliper using the correct hardware for the selected configuration. Keep the caliper aligned with the rotor and do not force parts into position.
Route the hose and check clearance
Route the hose away from sharp edges, moving parts and folding points. Check the gap around the caliper, rotor, fork, swingarm, tyre and other components before final tightening.
Test before normal riding
Check lever operation, rotor rubbing, bolt security and motor power cutoff. Complete a controlled low-speed test in a safe area before normal riding.
Hiley Series FAQ
Find answers about NUTT hydraulic brake fitment for Hiley EVO, Tiger, and TK-series electric scooters.
Is the 4-piston brake really necessary for high-power Hiley scooters?
Absolutely. For 60V high-performance models like the Hiley Tiger Supra, TK-RS, and TK-XS, a 4-piston system is a critical upgrade.
It provides the significantly stronger stopping power and precise modulation needed to safely control these heavy, high-speed machines compared to standard 2-piston designs.
How do I choose between 2-piston and 4-piston kits based on disc thickness?
The NUTT 2-piston model is optimized for standard 1.8 mm thick brake discs. In contrast, the 4-piston heavy-duty model is designed for 2.3 mm thick rotors.
Using a thinner disc with a 4-piston caliper may lead to a "softer" lever feel and weaker initial bite. For peak performance, we recommend pairing the 4-piston kit with 140x2.3mm rotors.
Do these brakes include cooling fin pads for steep hills?
Yes. Our premium kits come with integrated cooling fin brake pads capable of handling heat up to 450°C.
This is a major safety benefit for Hiley riders tackling steep descents or riding aggressively, as it prevents brake fade (loss of stopping power due to overheating) and ensures consistent performance.
Is the motor power-off sensor waterproof for all-weather riding?
Yes, the NUTT Hiley-series kits feature a fully waterproof power-off sensor. This ensures that the motor cutoff safety function remains 100% reliable even when encountering rain, puddles, or mud, protecting your scooter's electrical system from moisture ingress.
What is the default lever setup and can it be customized?
By default, the Left lever controls the Rear brake and the Right lever controls the Front brake. This matches the factory setup for Hiley EVO and Tiger models.
If you require a custom control direction (Moto-style), please contact nuttbraking@outlook.com before placing your order to ensure the hose lengths and bleed ports are configured correctly.
What photos should I send to confirm fitment for my Hiley model?
To ensure 100% compatibility with your specific production version, please send clear photos of:
- Front wheel: Showing the fork structure and caliper mount.
- Rear wheel: Showing the swingarm area and rotor side.
- Brake lever connector: Showing the power-off sensor plug (standard 2-pin waterproof).
Unsure about your Hiley setup? Send your photos to nuttbraking@outlook.com. Our technical team will verify the correct
mounting position and hose lengths for you.
